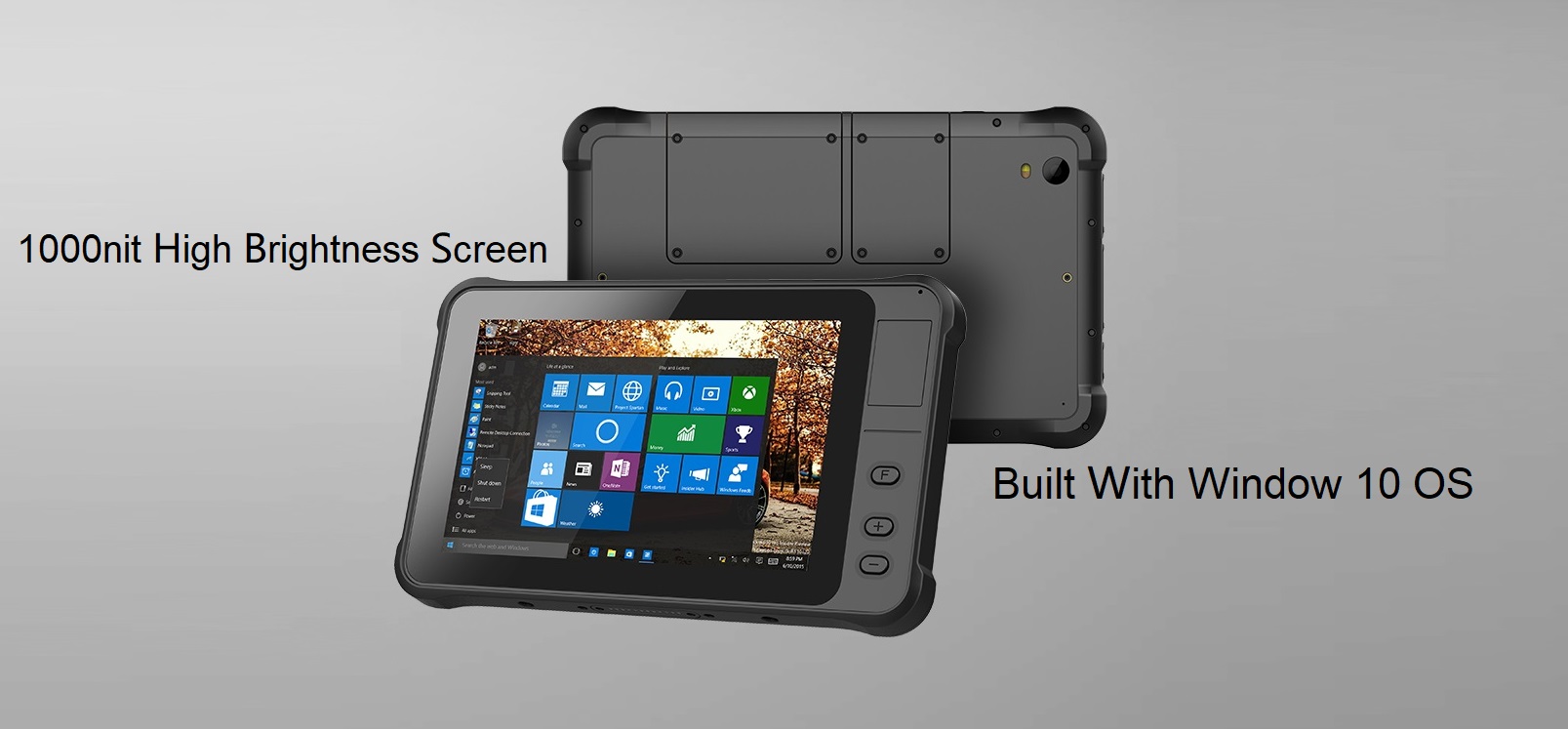

7-Inch Intel In-vehicle Rugged Tablet

Short Description:

Model: Q7w

• Support for Windows 10 system

• Optional 3G/4G all network communication, WiFi, Bluetooth and other communication modes

• 7500mAh battery, 6-8 hours of machine endurance

• IP65 high protection level, in accordance with MIL-STD-810G

• Support GPS, Beidou, GLONASS, more accurate positioning

• 800×1280 IPS, 1000nit high brightness screen, more suitable for outdoor harsh environment

• Support 1D/2D, UHF, NFC, ID card and other functional modules for free selection


Product Detail

Product Tags

2
7 inch Intel vehicle tablet data -1
7 inch Intel vehicle tablet data (1)
3
7 inch Intel vehicle tablet data (2)
7 inch Intel vehicle tablet six views data

Specification Parameter

Basic parameters
Dimension 217 x 134 x 21.4mm
Weight device unit 680g
Device Color black
LCD 7 inch IPS 16:10, 800x1280, 1000nits
Touch Panel 5 point G+G capacitive touch screenCorning Gorilla Glass
 Camera  Front 2.0MP Rear 5.0MP
 I/O  HDMI 1.4a x 1,Micro USB 2.0 x 1，SIM Card x 1,TF Card x 1，12pins Pogo Pin x 1,Φ3.5mm standard earphone jack x 1,Φ3.5mm DC jack x 1
 Power  AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/3A
 Performance parameter
 CPU  Intel Atom x5 Z8350
 OS  Windows 10
 RAM  4GB
 ROM  64GB
 Battery
 Capacity  3.7V/7500mAh
 Type  Built in polymer lithium ion battery
 Endurance  6hrs ( 50% volume sounds, 50% brightness,1080P HD video display by default )
 Communication
 WIFI  WiFi 802.11 a/b/g/n/ac (2.4G+5.8G)
 Bluetooth  BT4.2
 3G/4G (Optional)  LTE FDD: B1/B3/B5/B7/B8/B20LTE TDD: B38/B40/B41

WCDMA: B1/B5/B8

GSM: B3/B8
 GNSS  Built-in Glonass, Beidou, GPS
 Data Collection
 NFC  Optional, 13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092
 1D  Optional, N4313
 2D  Optional, EM80
 UHF  Optional, M-550 UHF RFID
 1D  Optional reading the fingerprint information in the 1st and 2nd ID card
 Fingerprint  Optional, Fingerprint collection module for ID card
 Reliability
 Operate Temperature  -20 °C ~ 60 °C
 Store Temperature  -30 °C ~ 70 °C
 Humidity  95% Non-Condensing
 Rugged Feature  IP65 certified, MIL-STD-810G certified
 Drop Height  1.22m

Accessories（Optional）

Q7 Docking Charger-1

Docking Charger

75绑带-1

Hand-strap

Hand-strap-1

Vehicle Mount

Application Range

Various modules and accessories can be selected to meet customers' application in various industries.

application range

      Warehouse Management                         Military Equipment                                  Outdoor Inspection                                 Animal Husbandry
